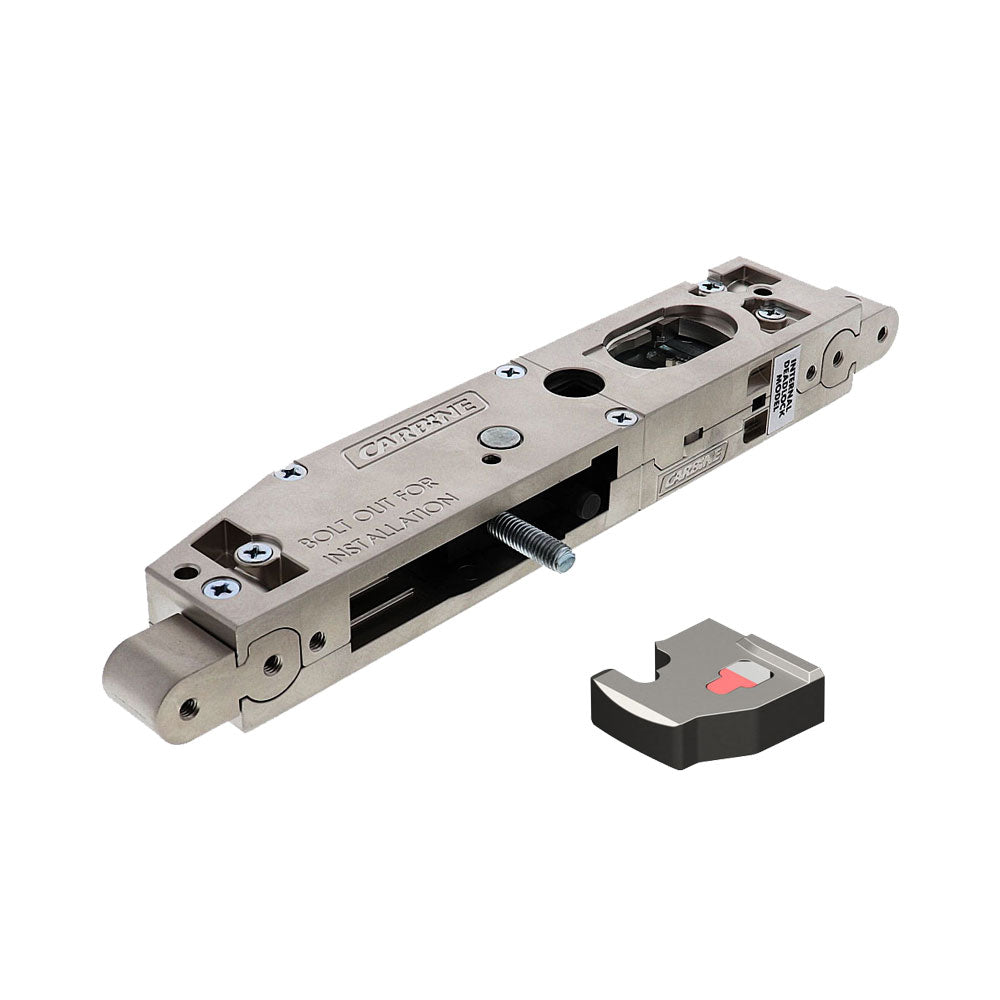

Carbine Acrobat - 28mm Hook Bolt & Lock Body

Features

• Interchangeable stainless-steel locking bolts
• Easy to install mounting system, providing increased durability and more accurate and easier installation
• Ergonomically designed with a brushed stainless-steel look to seamlessly integrate into existing door hardware or new installations
• Patented latching strike with a wide mouth opening
• Accepts standard oval 570 style cylinders, not supplied and ordered separately
• Uses R cam on the cylinder for all applications except for when using the CSL which that cam comes in the box of the handle
• Suitable for metal hollow style doors 28mm to 50mm
• Suitable for timber doors 32mm to 50mm
• When installed with an egress handle gives full Building Code of Australia and NCC Egress compliance
• High quality stainless-steel escutcheon with a rubber insert acting as a clamp for strength

Configurations available to suit:

• Double cylinder - key inside and out for added security
• Cylinder and Turn - ergonomic knob with left- or right-hand configuration in the one product with a visual indicator lets users know if the door is locked or unlocked
• Cylinder and Escape Turn - left or right-hand configuration in the one product with a visual indicator lets users know if the door is locked or unlocked
• Cylinder and Short lever - providing internal deadlock or hold back
• Cylinder and Egress handle - suitable for emergency exit doors. Contains 4 configuration options in the one product such as left or right hand 45-degree configuration and left or right-hand configuration.

In This Kit

Bolt Type: 28mm Hook Bolt

Function: Standard

Finish: Silver

Suits: Aluminium

Provided: Body and Bolt

Depth (mm): 23mm

Model: Sliding Door
