• Dorma Door Closer TS68 BC EN2-4 SIL
1 1

Dorma

Dorma Door Closer TS68 BC EN2-4 SIL

Dorma Door Closer TS68 BC EN2-4 SIL

$152.00 AUD
$152.00 AUD
Sale Sold out

SKU: LSS-DOR-DCRL.01

Shipping & Stock:

Main Store: ETA 3–7 business days.

Warehouse: ETA 5–10 business days.

In stock (200 units available).

Taxes included. Shipping calculated at checkout.
Description

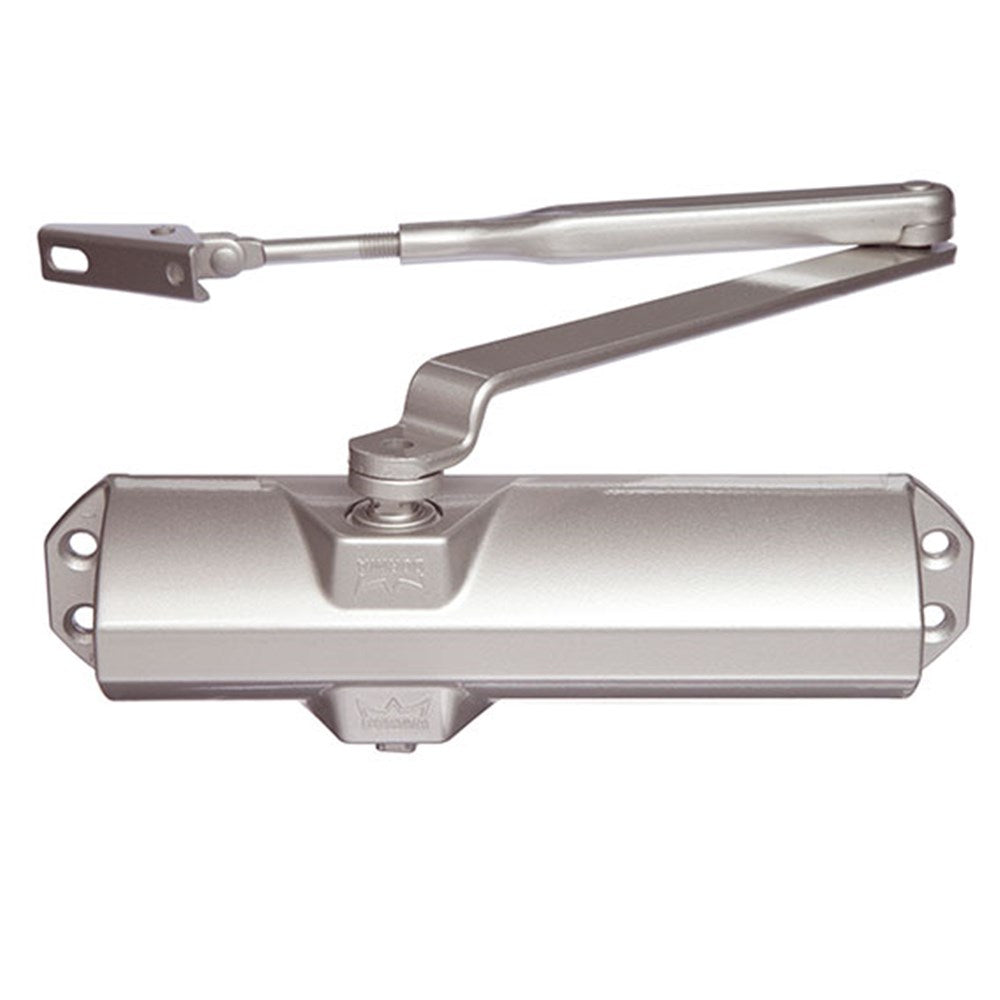

The DORMA TS68 closer is non-handed closer suitable for all common doors and does not require a mounting backplate. With adjustable closing speed of 180° - 15° and 15° - 0° via 2 separate valves. Uses a standard arm.

Suitable for installation on doors up to 1100mm (W).

firerated-icon Approved to AS1905 Part 1 fire resistant doors (backcheck model only).

Finished in silver.

Dimensions Weight
220mm (L) x 45mm (W) x 53.5mm (H) 1.4kg
  • Dorma TS68 regular door closer
  • ideal low-cost solution for standard doors
  • variable closing force via arm power shoe and templating size EN2/3/4
  • 2 closing speed adjustment valves
  • fire rated
  • non handed
  • for standard internal doors up to 1100mm
  • slimline arm assembly
  • backcheck
  • model without backcheck also available
  • parallel bracket included
  • finished in silver
Technical Specifications
Brand DORMAKABA
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Holdopen No
Has Slide Arm No
Parallel Arm Bracket Included Yes
Spring Strength EN2-4
Fire Rated Yes
