Dorma

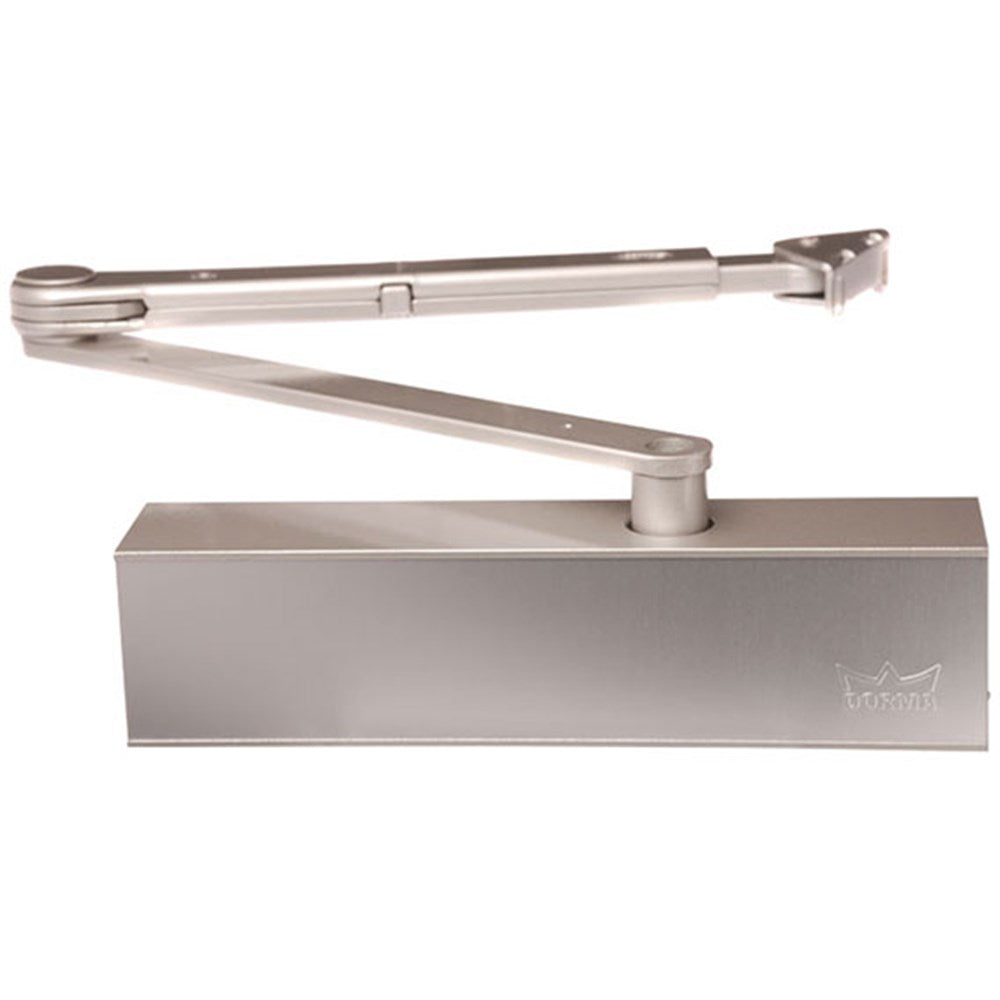

Dorma Door Closer TS83 EN3-6 H/O SIL
Dorma Door Closer TS83 EN3-6 H/O SIL
SKU: LSS-DOR-DCRL.06
Couldn't load pickup availability
Description
The DORMA TS83 EN3-6 closer is non-handed closer suitable for interior and external (outward opening) doors and can be tailored to a specific door with simple adjustment.
Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by hold-open arm with on/off switch.
Backcheck is self regulating or adjustable by valve and delayed action is also adjustable.
Suitable for standard doors installation up to 1400 mm (W).
Suitable for fire doors.
| Dimensions | Weight |
| 245 mm (L) x 46 mm (W) x 60 mm (H) | 1.7kg |
Technical Specifications
| Brand | DORMAKABA | ||||
| Adjustable Closing Speed | Yes | ||||
| Adjustable Latching Speed | Yes | ||||
| Finish | Silver | ||||
| Has Backcheck | Yes | ||||
| Has Delay Action | Yes | ||||
| Has Holdopen | Yes | ||||
| Parallel Arm Bracket Included | Yes | ||||
| Spring Strength | EN3-6 | ||||
| Fire Rated | No
DescriptionThe DORMA TS83 EN3-6 closer is non-handed closer suitable for interior and external (outward opening) doors and can be tailored to a specific door with simple adjustment. Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by hold-open arm with on/off switch. Backcheck is self regulating or adjustable by valve and delayed action is also adjustable. Suitable for standard doors installation up to 1400 mm (W).
|
