• Dorma Door Closer TS83 EN7-90NM SIL
1 1

Dorma

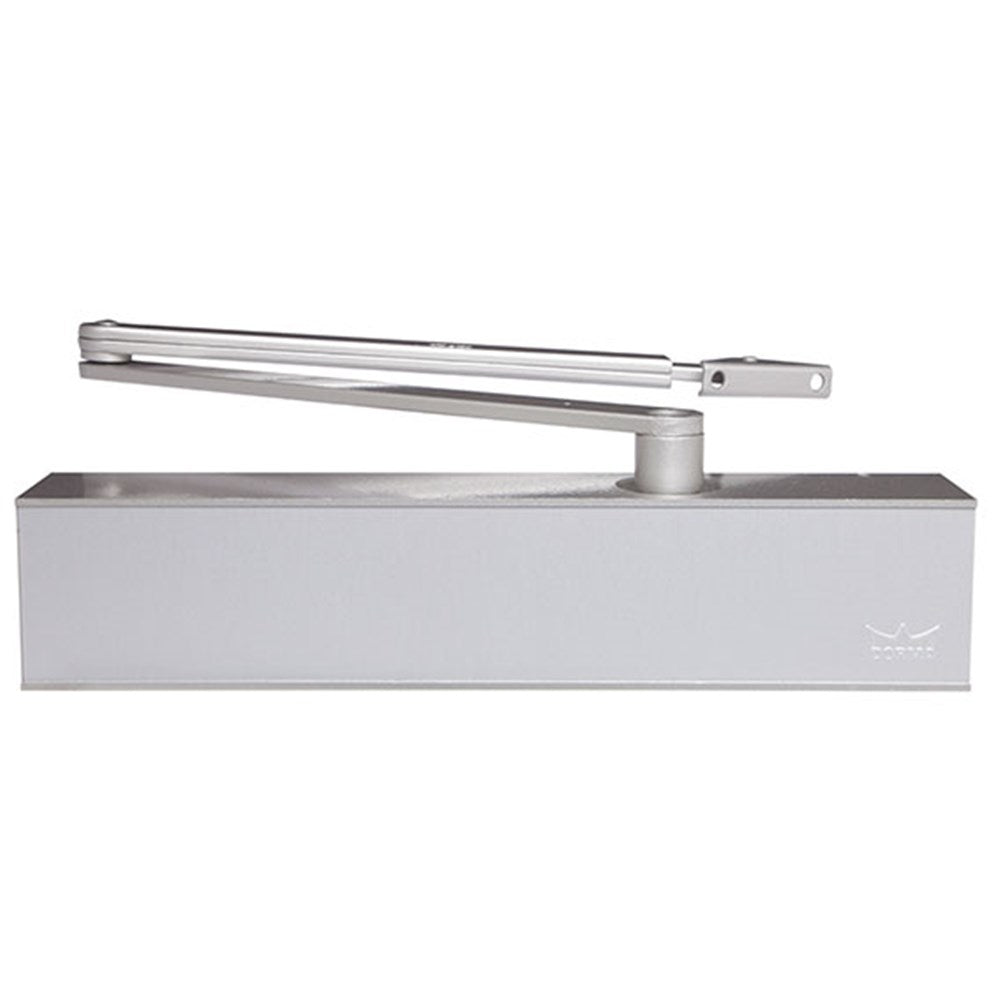

Dorma Door Closer TS83 EN7-90NM SIL

Dorma Door Closer TS83 EN7-90NM SIL

$738.00 AUD
$738.00 AUD
Sale Sold out

SKU: LSS-DOR-DCRL.08

Taxes included. Shipping calculated at checkout.
Description

The DORMA TS83 EN7 closer is non-handed closer suitable for interior and external (outward opening) doors and can be tailored to a specific door with simple adjustment.

Fixed power, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm.

Backcheck is self regulating or adjustable by valve.

Suitable for standard doors installation up to 1600 mm (W).

firerated-icon Suitable for fire doors.

Dimensions Weight
293mm (L) x 47.5mm (W) x 60mm (H) 3.3kg

  • Dorma TS83 EN7 door closer.
  • Ideal for heavy commercial applications.
  • Closing force size EN7.
  • Overhead surface mounted door closer.
  • Adjustable latching action by valve.
  • Adjustable backcheck.
  • For standard internal doors up to 1400 mm.
  • Flat-form arm assembly.
  • Fire rated.
  • Finished in silver.
Technical Specifications
Brand DORMAKABA
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action Yes
Has Holdopen No
Has Slide Arm No
Parallel Arm Bracket Included No
Spring Strength EN7
Fire Rated Yes
