Lancaster Security Supplies

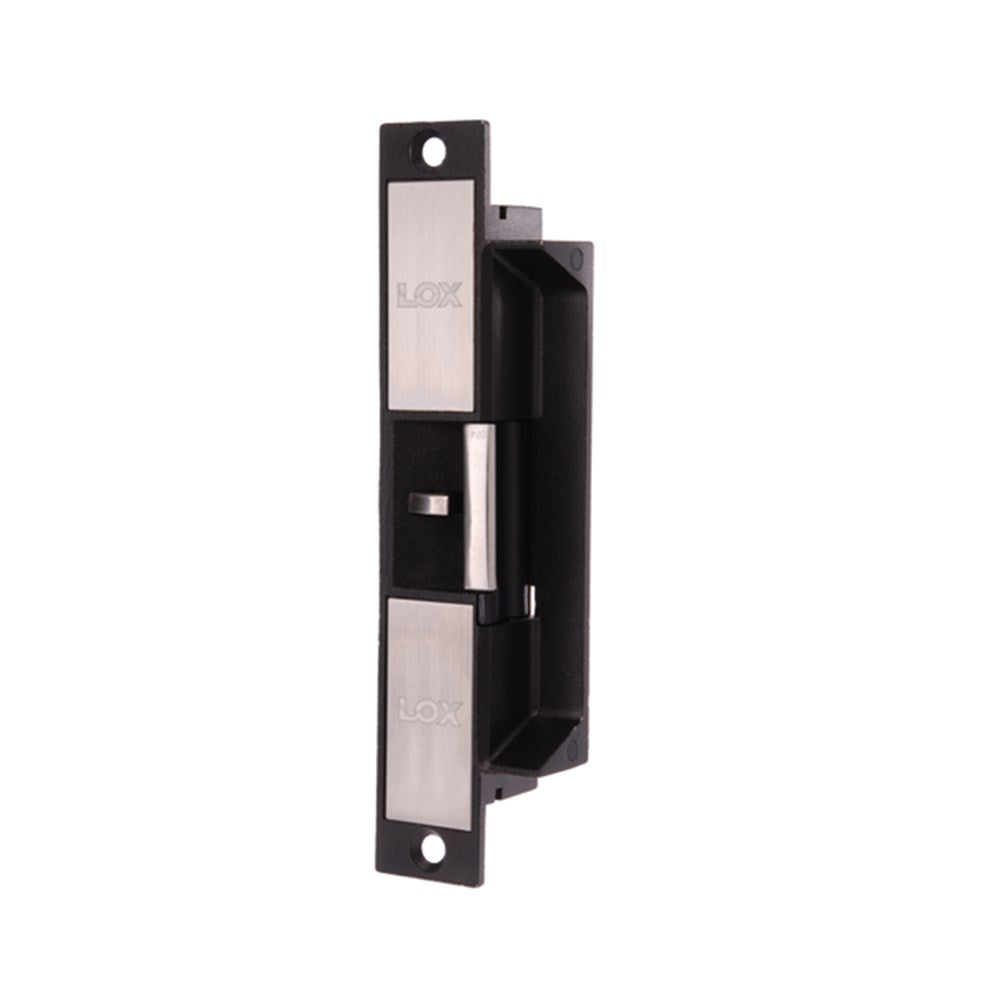

LOX ES20M High Security Electric Strike 10-30VDC Monitored 4 Hour Fire Rated - ES20M

LOX ES20M High Security Electric Strike 10-30VDC Monitored 4 Hour Fire Rated - ES20M

$320.00 AUD
$320.00 AUD
Sale Sold out

SKU: LSS-LOX-ESLC.03

Shipping & Stock:

Main Store: ETA 3–7 business days.

Warehouse: ETA 5–10 business days.

In stock (70 units available).

Taxes included. Shipping calculated at checkout.
Description

The LES20M series electric strikes are designed for use with all access control systems.

The LES20M series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip. A 5 mm lip extension is included with the strike if needed.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

firerated-icon Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .

  • Multi voltage 12~36V DC.
  • Current 12V DC @ 220mA, 24V DC @ 120mA, 36V DC @ 80mA.
  • Monitored:
    Door latch monitoring (DSS)
    Lock status monitoring (LSS)
    Anti-tamper sensor (ATS).
  • Fire rated up to 4 hours.
  • Power to lock/power to open field selectable.
  • Stainless steel construction.
  • Solenoid can be continuously powered.
  • Optional extension lips.
  • Self adhesive installation template.
  • Includes tab mounting kit.
  • Pre-drilled for extension lips.
  • Holding strength of over 1490kg.
  • Supplied with silencer rubber buffer.
  • LES20M is suitable for 18 mm latch with a 3 mm door gap.
Technical Specifications
Brand LOX LOCKING
Current 250 mA @ 12 Vdc to 125 mA @ 24 Vdc
Drilled for Lip Extension Yes
Field Selectable Fail Safe/Fail Secure Yes
Holding Strength in kg 1000
Working Voltage 10 Vdc to 28 Vdc
Fire Rated Yes
Locking Mode Fail Secure/Fail Safe
Monitoring Monitored Strike and Door Status
