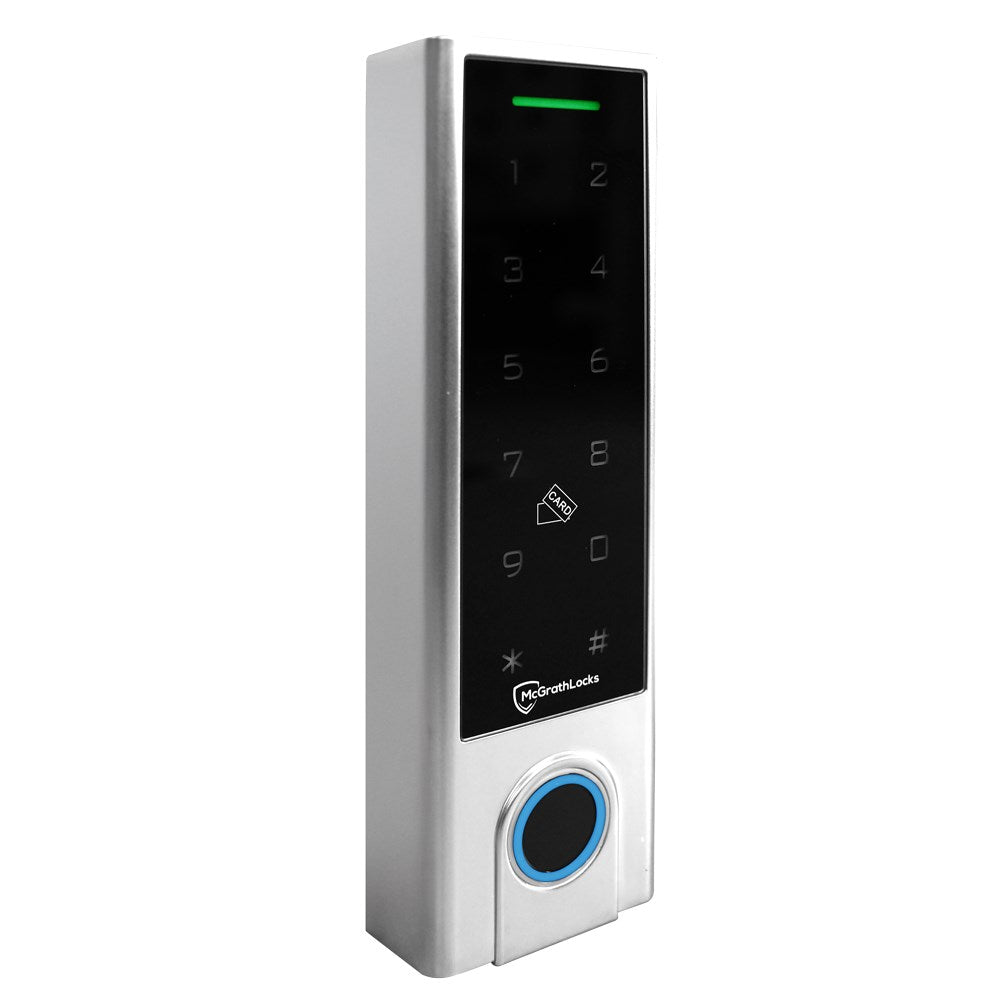

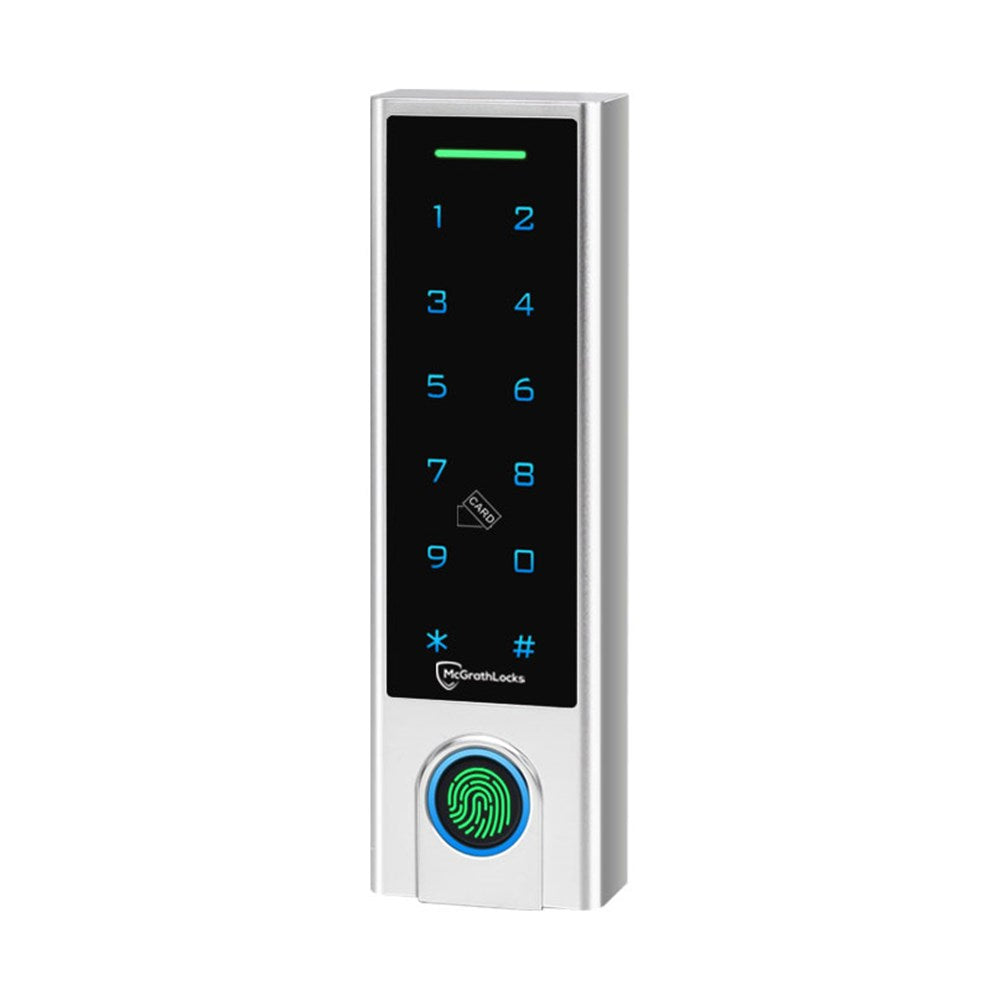

McGrath Locks TGFP43 Slimline Access Control Keypad With Fingerprint, BLE, RFID and Pin Code, 1000 Users, 12V DC, IP66 Rating, Silver Finish

McGrath Locks TGFP43 Slimline Access Control Keypad With Fingerprint, BLE, RFID and Pin Code, 1000 Users, 12V DC, IP66 Rating, Silver Finish

Regular price $220.50 AUD
Regular price Sale price $220.50 AUD
Sale Sold out

SKU: LSS-MCG-DLGT.27

Taxes included. Shipping calculated at checkout.
Quantity
Description

The TGFP43 is a standalone keypad that provides a number of methods that can be used for controlling access. It is a hardwired device that requires a 12v power supply and can be used to control electric strikes, auto doors, garage doors and gates etc. Access can be managed via BLE, pin code, RFID credential and fingerprint.

Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through fingerprint, pin code, RFID credential and eKeys managed via BLE. By adding a McGrath Locks gateway you can remotely access your device from anywhere in the world.

  • Lock functions and access easily managed via McGrath Locks App.
  • Enrol Pin Codes, RFID credentials, fingerprints and send eKeys to your family and visitors.
  • Passage Mode can be used to leave your door open when required.
  • Anti peep code function stops unathorised people seeing the correct code inputted.
  • Incorrect attempt lockout.
  • Reset button can be disabled in App for additional security.
  • Audit trail within App to see who accessed your door and when.
  • Tempered Glass Screen for extra durability.
  • Keypad Dimensions 148 (H) x 43.5 (W) x 22 mm (D).
  • Silver body with black tempered glass keypad

Enrolment and Verification

  • Unlocking Method: Pin code, RFID credential, Fingerprint, Bluetooth, WIFI (Gateway Required).
  • Support System: Android - 4.3 /IOS 7.0 and above.
  • Platforms: TTLock, TTRenting, TTHotel.
  • Communication mode: Bluetooth 5.0 BLE and above.

 Locking Features & Functions

  • Length of Password: 4-9 Digits (Minimum of 4 digits available when set via APP.
  • Bluetooth Capacity (eKeys): Unlimited.
  • Pin code Capacity: 150.
  • Fingerprint Capacity: 100.
  • RFID Capacity: 1,000.
  • Card Working Frequency: 13.56MHz.
  • Voltage: 12V DC.
  • Motor Working Current: <80mA.
  • Relay Contact Rating: <2A @12VDC.
  • Keypad: Capacitive Touch Keypad.

Operating Environment

  • Environment: -30°C to 60°C.
  • Humidity: 0%-85% RH.
  • IP Class: IP66.
  • Warranty: 12 Months.

Hardware

  • Colour: Silver.
  • Material: Zinc Alloy Construction.
  • Keypad Dimensions: 148 (H) x 43.5 (W) x 22 mm(D).
