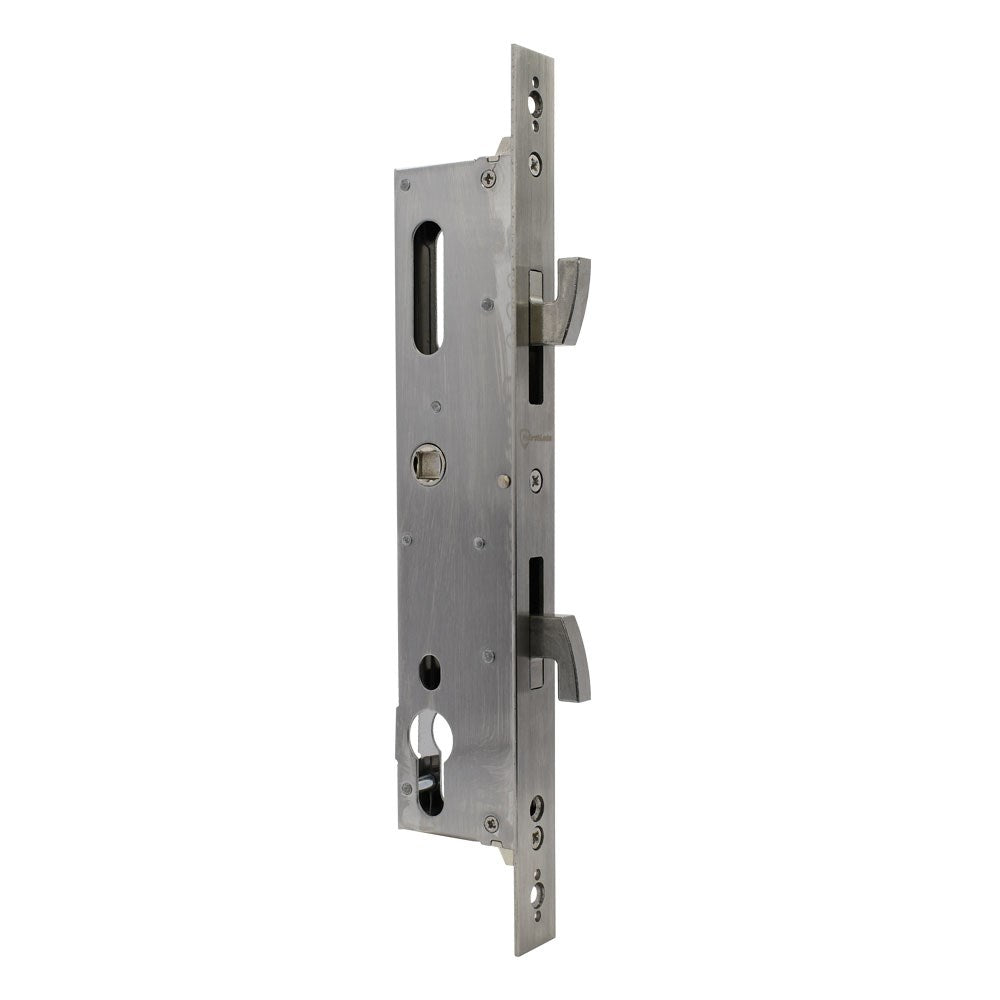

McGrath Euro Mortice Lock with Hook Bolt, 35mm Backset with 85mm Pitch, 8mm Spindle Hub, 270mm Face Plate, Suits A210, A231 and A236 Locks

This McGrath Locks narrow backset hook mortice lock is designed to work with sliding or bifold doors. It is compatible with the Slimline MLA210, MLA231 and MLA236 McGrath Locks and is very well suited to the Hex handle range.

Available in two sizes, 28 & 35 mm backset.

The bolts on these mortice locks are able to be locked by lifting the levers in an upward direction or by rotating Hex handle clock clockwise.

• Bolt material: SS304.
• Body Material: 1.5 mm thick SS304 steel.
• Body Size: 208 (H) x 42 (W) x 46 mm (D).
• Faceplate Size: 270 (H) x 22 mm (W).
• Lock pitch: 85 mm.
• Spindle: 8 mm.
• Finish: SSS
• Cycle tested to 500,000 cycles.
• 12 month warranty.
