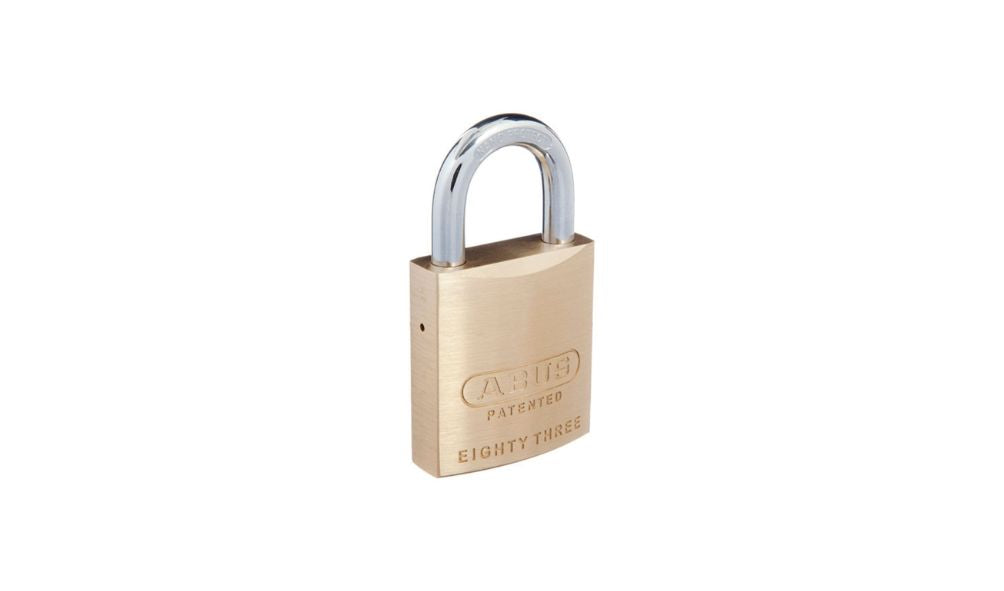

ABUS 83 Series Rekeyable Padlock - 45mm Body & 25mm Hardened Shackle.

Product Description

The ABUS 83/45 Series Padlock is a durable, rekeyable brass padlock built for reliable everyday security. Featuring a solid brass body, hardened alloy shackle, and quick-change rekeying system, it’s designed for both strength and convenience.

Key Features

• 45 mm solid machined brass body
• Hardened alloy steel shackle with Nano-Protect™ plating
• Rekeyable with removable cylinder assembly
• Compatible with restricted keying systems (570 barrel, LW4/LW5 keyway)
• Certified to AS4145.4 2002 (SP6 Physical, C4 Corrosion)

Dimensions

• Body Width (a): 47 mm
• Horizontal Shackle Clearance (b): 24 mm
• Vertical Shackle Clearance (c): 25 mm
• Shackle Diameter (d): 8 mm

Technical Specifications

• Brand: ABUS
• Material: Solid Brass Body, Special Alloy Shackle with Nano-Protect™ plating
• Body Size: 45 mm
• Shackle Diameter: 8 mm
• Shackle Material: Special Alloy Steel
• Shackle Clearance (Vertical): 25 mm (standard)
• Key Profile: LW5 (compatible with LW4)
• Cylinder Type: 570 6-pin style barrel
• Rekeyable: Yes – removable cylinder assembly
• Keying: Keyed to Differ (KD)
• Locking Mechanism: Double ball locking
• Functions: Snap shut or key captive (convertible)
• Standards Compliance: AS4145.4 2002 – Physical Security Rating SP6, Corrosion Resistance Rating C4
• Supplied: Boxed
• Accessories: Range of replacement shackles available
