Brava
Brava Passage Leverset - LN Series
Brava Passage Leverset - LN Series
Regular price
$60.20 AUD
Regular price
Sale price
$60.20 AUD
SKU: LSS-BRV-PLSG.03CP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

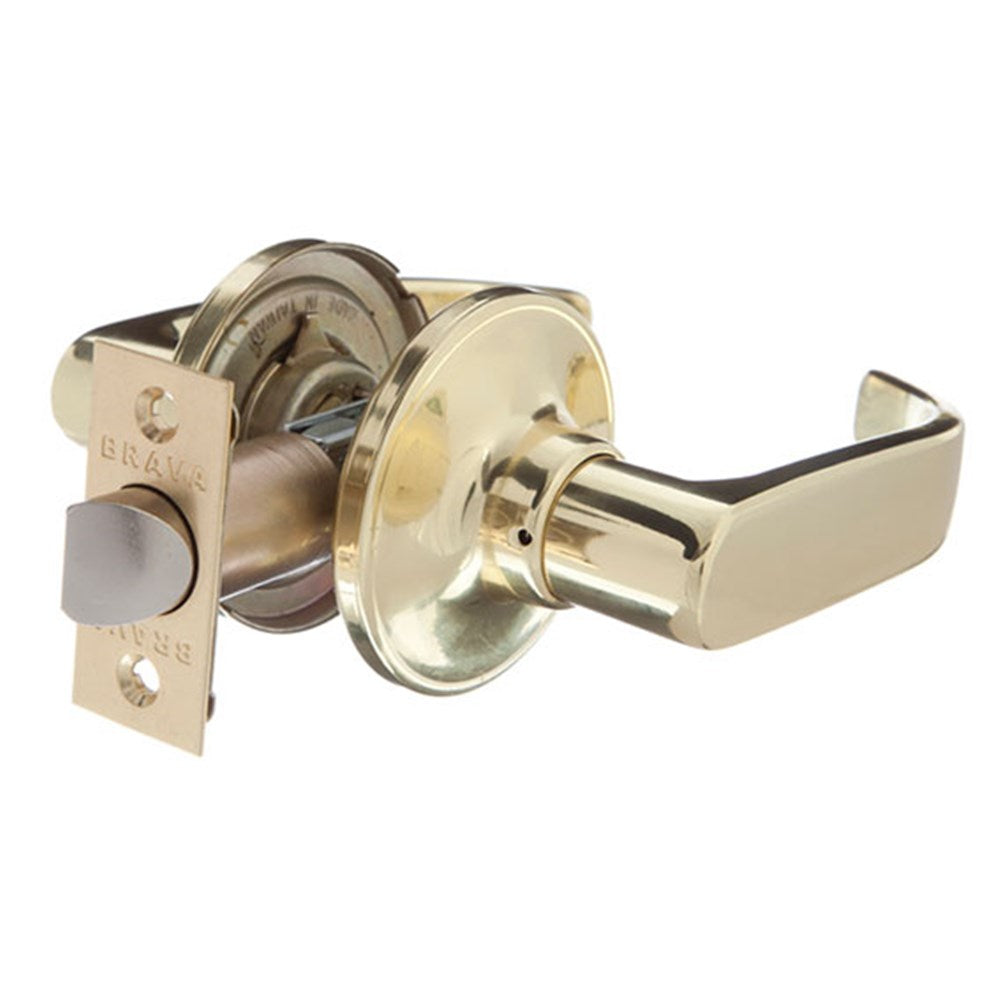

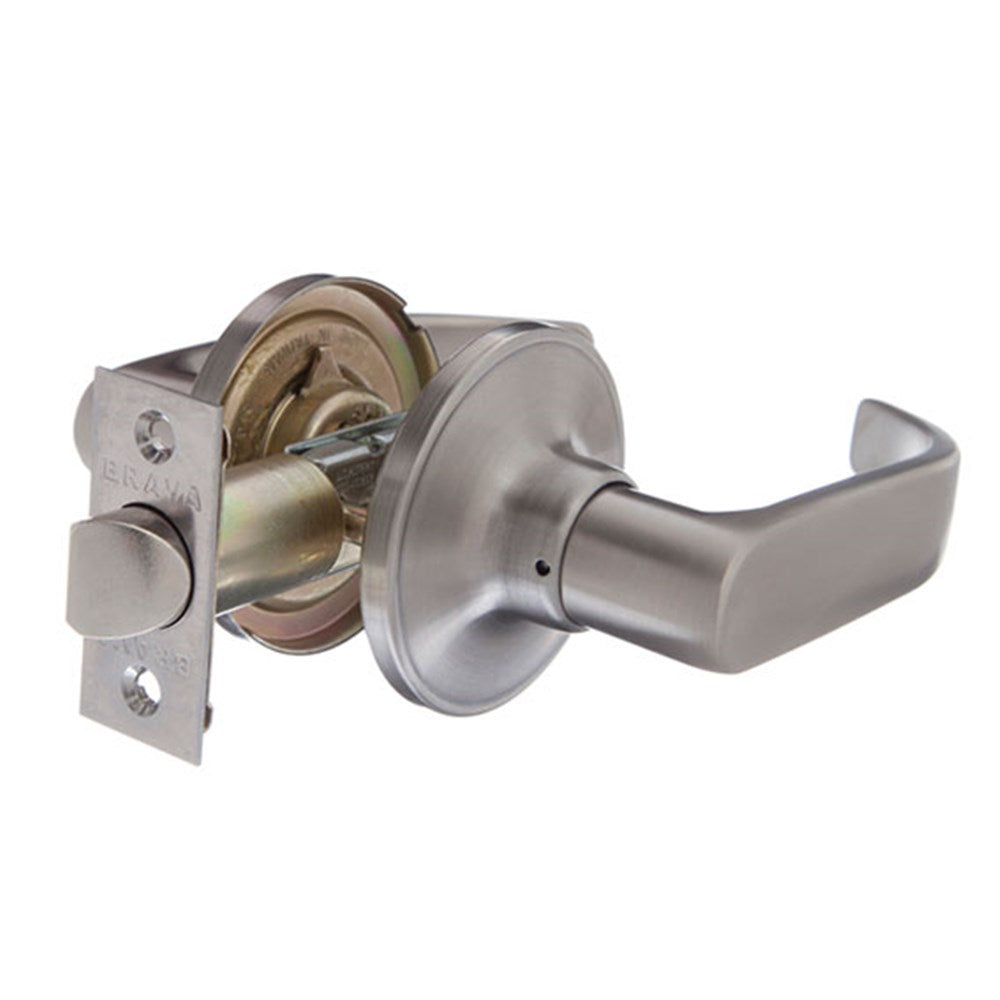

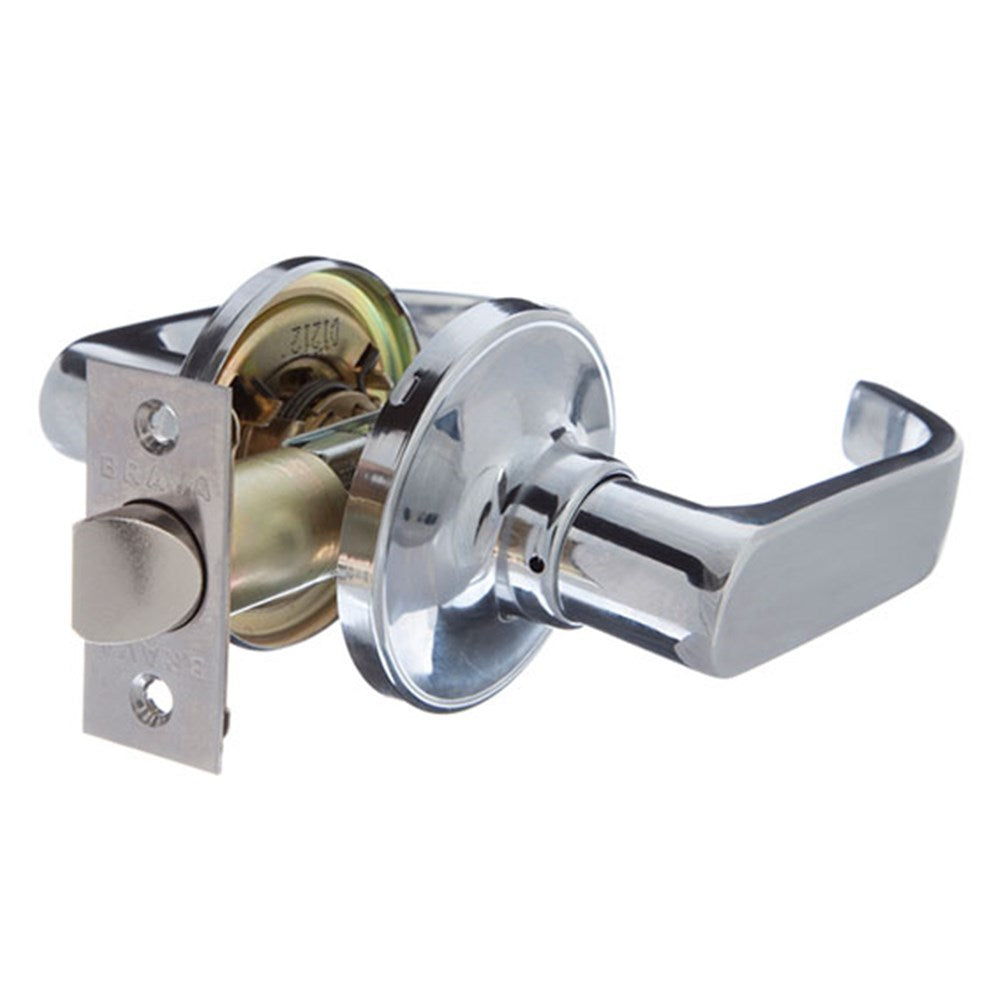

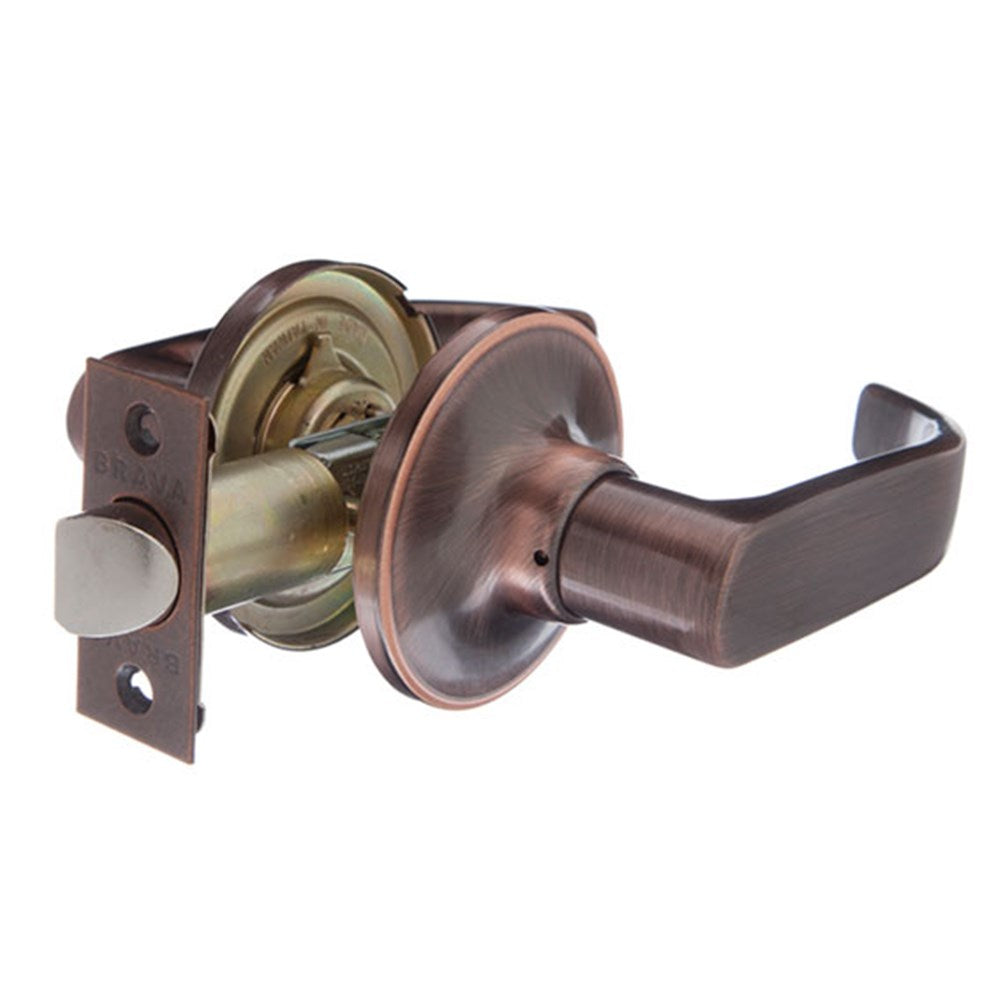

BRAVA Urban LN series passage leverset. Domestic grade passage leverset.
Passage function
- Both inside and outside levers are always free.
Additional info
Tiebolt concealed fixing.
Straight lever design with return.
Finishes Satin Stainless Steel, Polished Brass, Matte Black, Chrome Plate, Satin Nickel
Supplied boxed (and colour coded) with mounting hardware.
| Door thickness | 35-51mm |
| Backset | adjustable 60/70mm |
|
max. Lever / knob projection distance may not include turnsnib |
53mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | adjustable 60/70mm |
| Latch face plate | 57mm x 25mm |
| Door handing | Non-handed levers |
| Rose | 66.5mm |
Technical Specifications
| Brand | BRAVA |
| Display Pack | No |
| Finish | Satin Stainless Steel, Polished Brass, Matte Black, Chrome Plate, Satin Nickel |
| Function | Passage |
| Lever Shape | Straight with Return |
| Lock Grade | Domestic |
| Lock Type | Tiebolt |
| Rose Diameter (in mm) | 66.5 |
| Suits Door Thickness | 35 mm to 51 mm |
| Backset | 60/70 mm Adjustable |
×
